Description

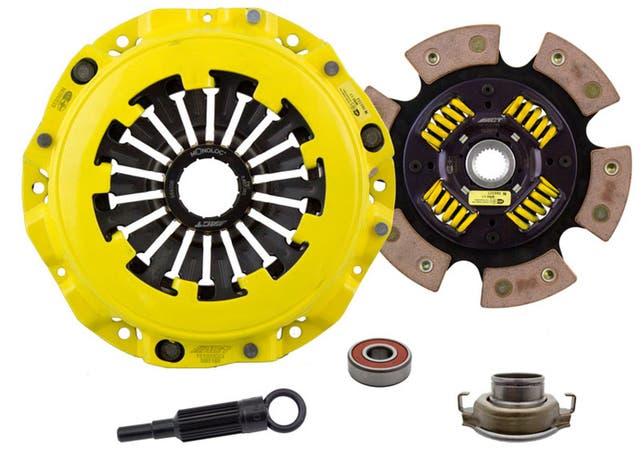

XT-M/Race Sprung 6 PadSB9-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc’s hardened chrome-moly steel construction will provide years of service.

Features

• “Excellence In Performance”, Backed By The Best One-Year Warranty In The Industry!

Fitment

• 1991-1994 Subaru Legacy
• 2004-2005 Subaru Baja
• 2008-2009 Subaru Legacy | Note: Designed for use with stock dual-mass flywheel.
• 2002 Subaru Impreza | Note: Must be used with ACT flywheel or 2003 to 2005 WRX flywheel.
• 2003-2005 Subaru Impreza
• 2004-2005 Subaru Forester | Note: 230mm. Must use with ACT flywheel or 03 to 05 WRX flywheel (not provided).
